High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine

Zhengzhou Zhenheng Construction Equipment Co., Ltd.

High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine

Brand Name : ZHENHENG

Model Number : JS2000

Certification : SGS, ISO, BV, CE

Place of Origin : HENAN CHINA

MOQ : 1 SET

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 60 SETS PER MONTH

Delivery Time : 7-15 WORKING DAYS AFTER CONFIRM ORDER

Packaging Details : Export standard container: 20GP or 40GP, 40HC

Keywords : Twin Shaft Concrete Mixer

Warranty : 1 Year

Product name : Twin shaft concrete mixer

Color : Customer's Requirement,Yellow,can be customized,Yellow orange white or custimized,as you wish

Power type : Electric Engine,Electric Motor Cement Mixer

Application : Construction Industry,airports,Middle or large scale construction,concrete mixing plant

Contact Now

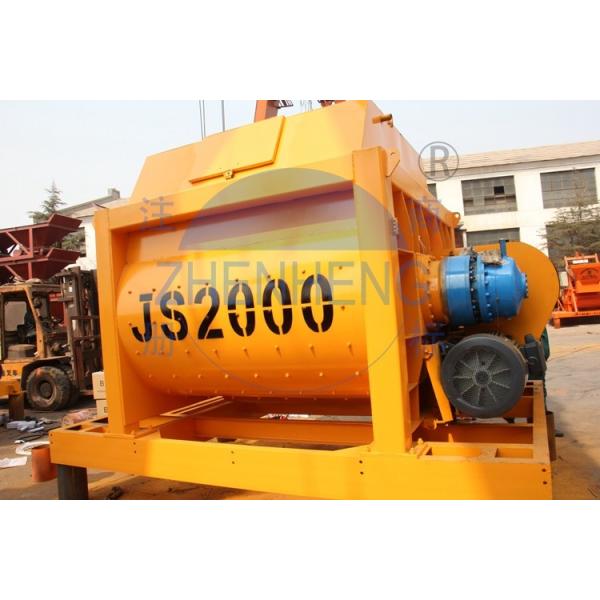

High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine

Brief Introduction of High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine

Zhenheng JS Series Concrete Mixer is twin shaft compulsory concrete mixer. The common used models include JS500, JS750, JS1000, JS1500, JS2000 and JS3000. It cannot only work independently, but also be applied, together with concrete batching machine, in concrete batching plant. JS Series Concrete Mixer has such advantages as reasonable and compact structure, outstanding mixing quality, high mixing efficiency, low energy consumption and long service life.

Standard Twin-Shaft Concrete Mixer Model JS2000 made by the matching degree of high-quality and external parts, versatility, easy maintenance, customer use pressure-free, low cost of use, save customer time and money costs.


The shaft end seal is a special structure and an important part of concrete mixer. It is function is to protect the supporting bearing at the shaft end from mortar erosion, prevent the leakage of the shaft end, and ensure the normal operation of the mixing system.

Mixing structure is designed with a barrel stirring shaft which is horizontal vertical installed. There are mixing blades on the shaft. When it works, the shaft drives blades to shear, extrude, turn and push the inside materials in order to achieve power mixing effect with uniform mixing, good quality and high efficiency.


Main Features of High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine

Features

  1. High automation and efficiency;

  2. Good quality with long service life;

  3. Low consumption and noise, easy operation or maintenance;

  4. High discharging speed;

  5. High productivity, it can mix various kinds of materials.


Technology and Details of High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine

Model

JS2000

Discharging Volume (L)

2000

Charging Volume (L)

3200

Capacity(m³/)

≥100

Max.Aggregate Size(mm)

60-80

Discharge Height(mm)

3800/4200

Mixing Blade

Speed (r/min): 31 Qty:2X7

Mixing Motor

Model:Y250M-6 Power(KW):2*37

Hoist Motor

Model:YES80L-4 Power(KW):2

Water Pump Motor

Moder:CK65/20L Power(KW):4

Hopper Lifting Speed(m/min)

20

Overall Dimension(L*W*H)(mm*mm*mm)

10500*4500*9200

Note: Any change of technical data shall not be advised additionally.

Q: What is your payment method?

A: 30% of total price by T/T as down payment; 70% balance payment by T/T before delivery. We also support L/C, D/P, and other payment method.

Q: Do you have CE certificate and ISO certificate for your concrete batching plant?

A: Yes, we have.If need,we can apply for other certificate according to customer's requirements.

Q: Do you provide after-sale service?
Yes, The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and Thoroughly solve your problems. So After-sales Service was Provided and Engineers available to service machinery overseas.

Q: How about the quality of your products?
We are factory with more than 33 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery.You can also use Trade Assurance by Alibaba for products quality protection,on-time shipment protection payment protection.

Q: How about the price?
We are manufacturer,not dealer,so we can give you a lower price than those trade companies can.

More Photos of High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine for reference

High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine

High Automation Js2000 Twin Shaft Concrete Mixer Machine With Electric Engine
